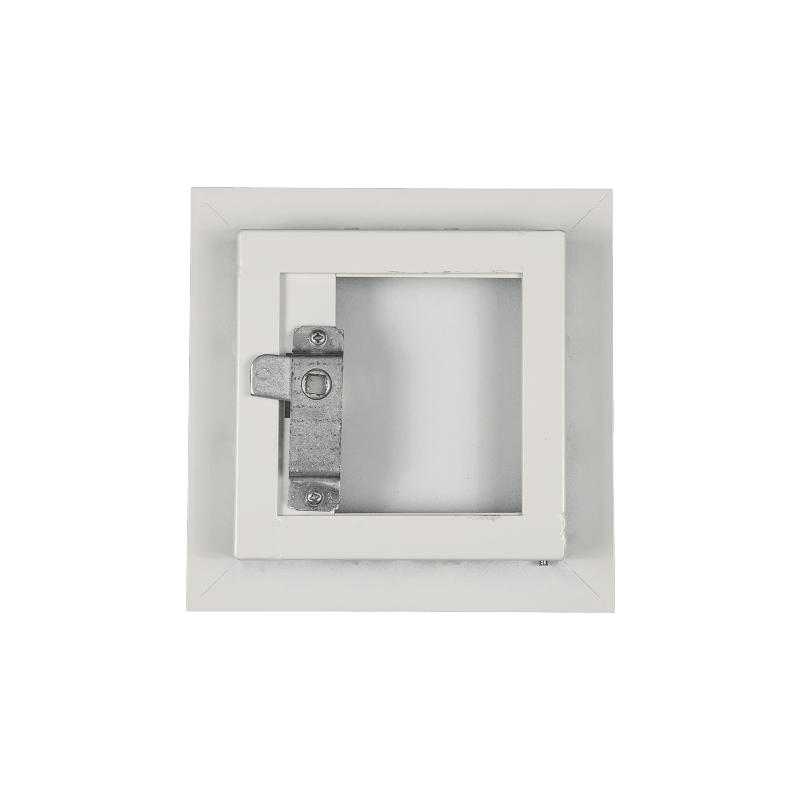

Non Fire Rated Access Panels(Picture Frame)
  • Non Fire Rated Access Panels(Picture Frame) details
  • Non Fire Rated Access Panels(Picture Frame) details
  • Non Fire Rated Access Panels(Picture Frame) details
  • Non Fire Rated Access Panels(Picture Frame) details
  • Non Fire Rated Access Panels(Picture Frame) details
  • Non Fire Rated Access Panels(Picture Frame) details
  • Non Fire Rated Access Panels(Picture Frame) details
  • Non Fire Rated Access Panels(Picture Frame) details

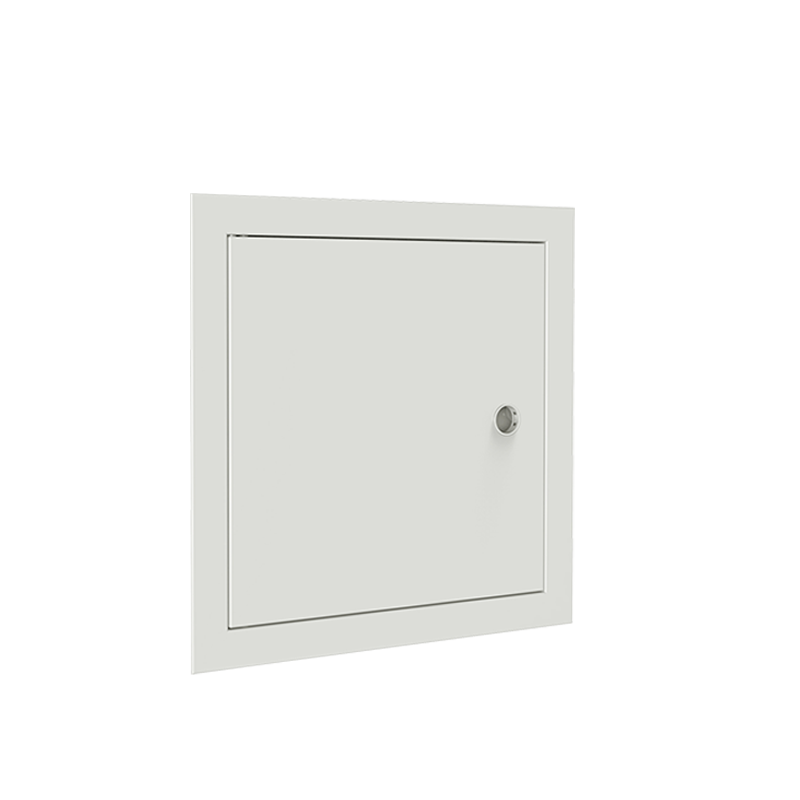

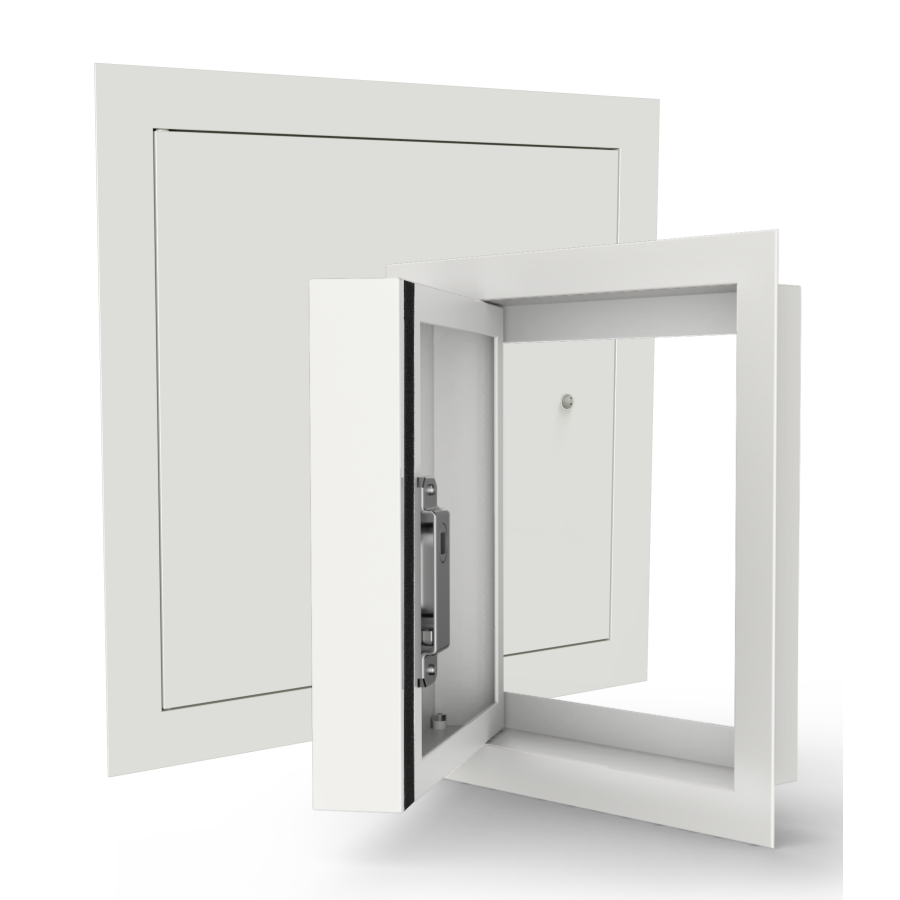

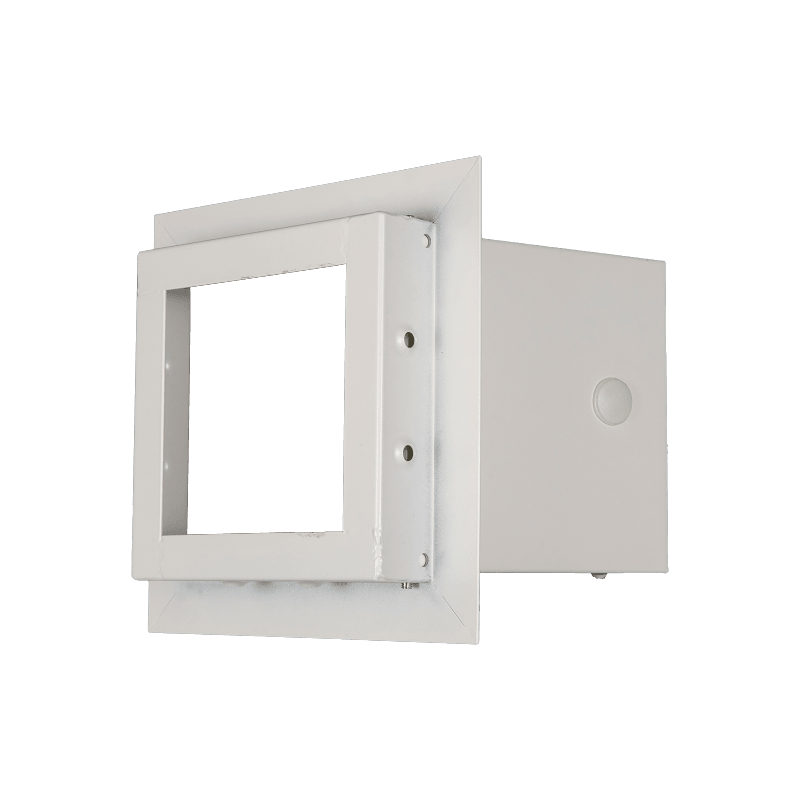

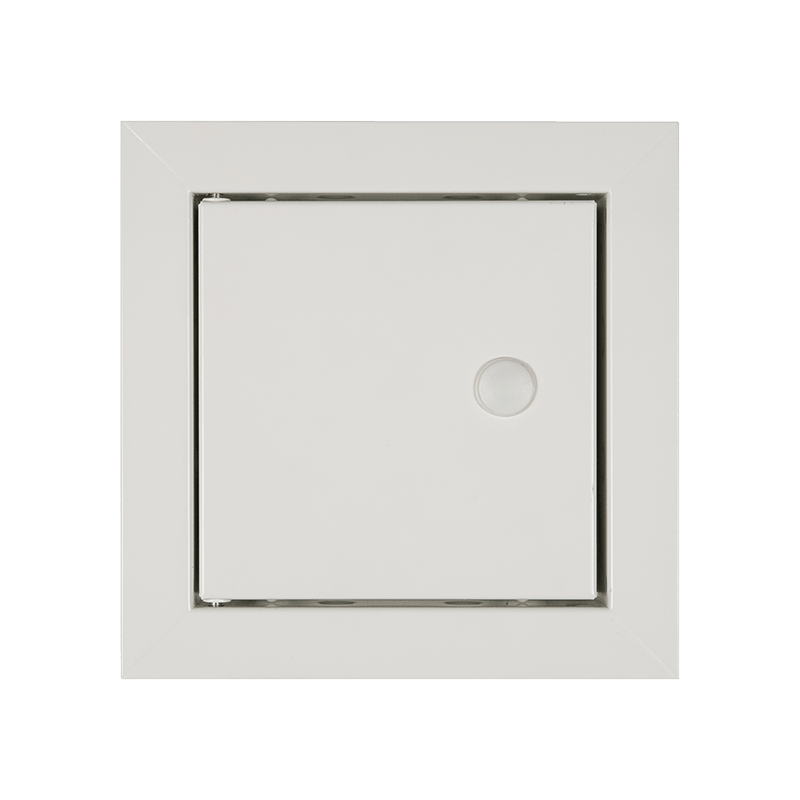

Non Fire Rated Access Panels(Picture Frame)

FEATURES &OPTIONS

SPECIFICATION

• non fire rated option

• Picture Frame(PF)

• Manufactured to order

• 1.2mm zintec steel

• CNC manufactured to IS09001:2015

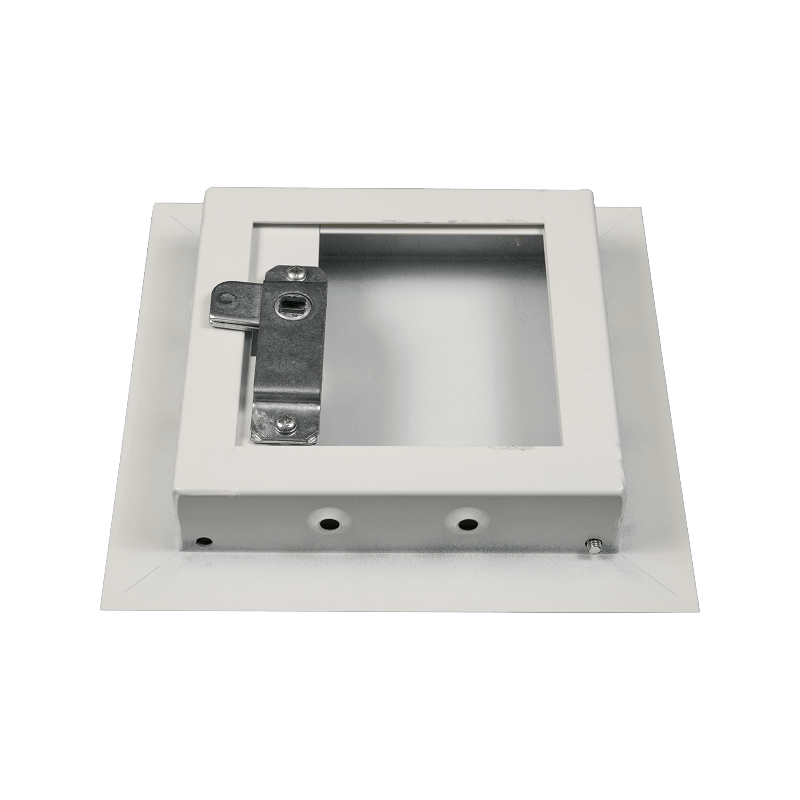

• Budget Lock

• Frame options to suit finishing requirements

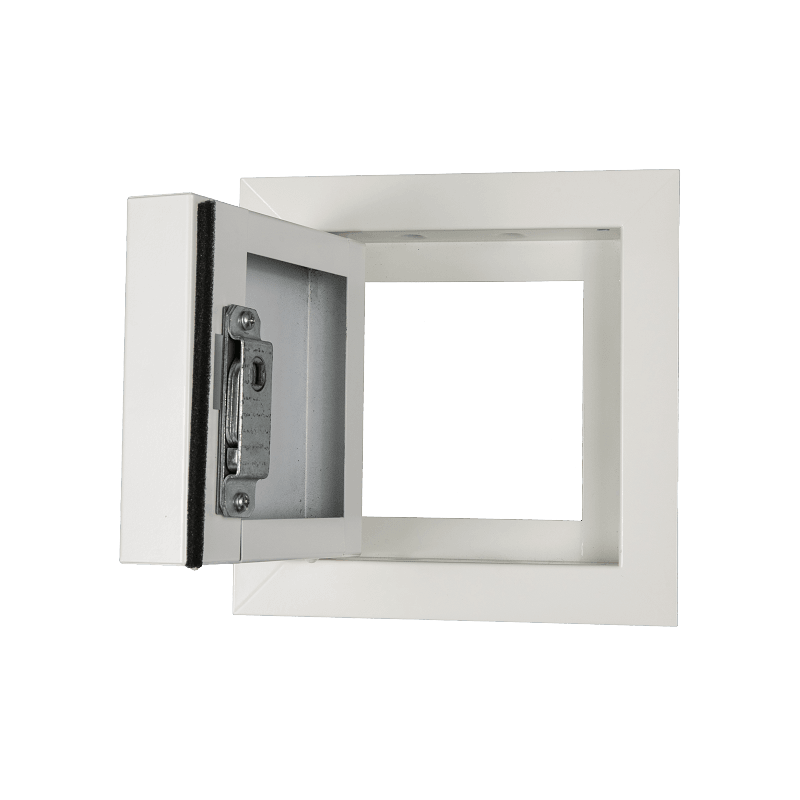

• Compression seal gasket

• Fully matt powder coated,suitable for finishing on site

E-mail : [email protected]
PDF Downloads Contact Us

Product Details



Part No.

Standard size(mm&inch)

Structural opening

X&Y(mm)

Clear opening

Depth(mm)

FZNFR2020PF

200x200

8x8

205x205

200x200

140x150

35

FZNFR3030PF

300x300

12x12

305x305

300x300

240x250

35

FZNFR3060PF

300x600

12x24

305x605

300x600

240x550

35

FZNFR4545PF

450x450

18x18

455x455

450x450

390x400

35

FZNFR5555PF

550x550

22x22

555x555

550x550

490x500

35

FZNFR6060PF

600x600

24x24

605x605

600x600

540x550

35

FZNFR6090PF

600x900

24x36

605x905

600x900

540x850

35

FZNFR9090PF

900x900

36x36

905x905

900x900

840x850

35

FZNFR60120PF

600x1200

24x48

605x1205

600x1200

540x1155

35

Bespoke sizes upon request
