FEATURES&OPTIONS
SPECIFICATION
• 1 hour fire rated(1 FR)option
• Beaded Frame(BF)/Picture Frame (PF)
• Manufactured to order
• 1.2mm zintec steel
• CNC manufactured to IS09001:2015
• Steel Key
• Frame options to suit finishing requirements
• Compression seal gasket
• Fully matt powder coated,suitable for finishing on site
• Anti-bacterial specialist coating option
E-mail : [email protected]

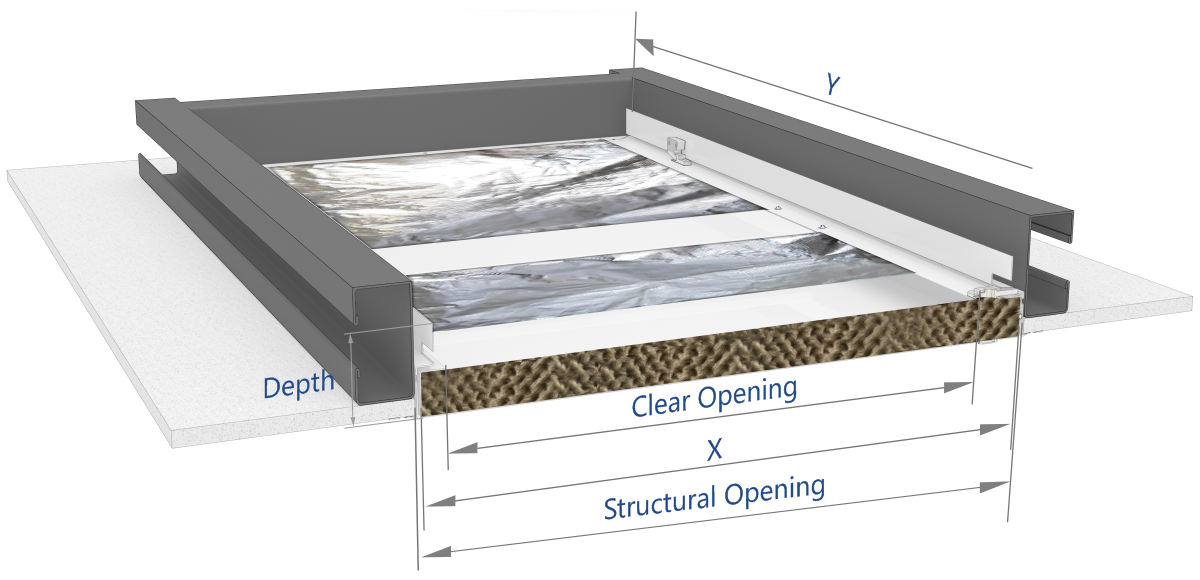

Part No. |
Standard size(mm&inch) |
Structural opening |
X&Y(mm) |
Clear opening |
Depth(mm) |
|
ADFR1880580PF |
580x1880 |
23x74 |
585x1885 |
580x1880 |
524x1824 |
45 |
ADFR1600600PF |
600x1600 |
24x63 |
605x1605 |
600x1600 |
544x1544 |
45 |
ADFR1700600PF |
600x1700 |
24x67 |
605x1705 |
600x1700 |
544x1644 |
45 |
ADFR1700680PF |
680x1700 |
27x67 |
685x1705 |
680x1700 |
624x1644 |
45 |
ADFR1880680PF |
680x1880 |
27x74 |
685x1885 |
680x1880 |
624x1824 |
45 |
ADFR1800810PF |
810x1800 |
32x71 |
815x1805 |
810x1800 |
754x1744 |
45 |
ADFR1950810PF |
810x1950 |
32x77 |
815x1955 |
810x1950 |
754x1894 |
45 |
ADFR1950910PF |
910x1950 |
36x77 |
915x1955 |
910x1950 |
854x1894 |
45 |
Bespoke sizes upon request
We are fast growing Fire Rated Access Doors suppliers and Fire Rated Access Doors manufacturers in China, company supply custom Fire Rated Access Doors in a wide variety of materials and styles
Fengze 1 hour fire rated door is made with certain standards that the manufacturing company has gone through. These fire rated access doors have special flashing and use a special door seal to stop leaks. Also, they are required to be placed on the outside of the building and have a clear opening to allow fire to flow into the building. 2 Hour fire rated door can be custom made.
There are many types of fire-rated doors in Fengze. In fact, the ones you see on buildings may be classified according to what kind of risk they help to reduce. For example, doors that are made with steel instead of aluminum will help to reduce the amount of heat loss from a space. Also, they will be able to withstand high temperatures. If a door is only rated for half of its ability, it simply won't be as effective in stopping the fire from spreading.
